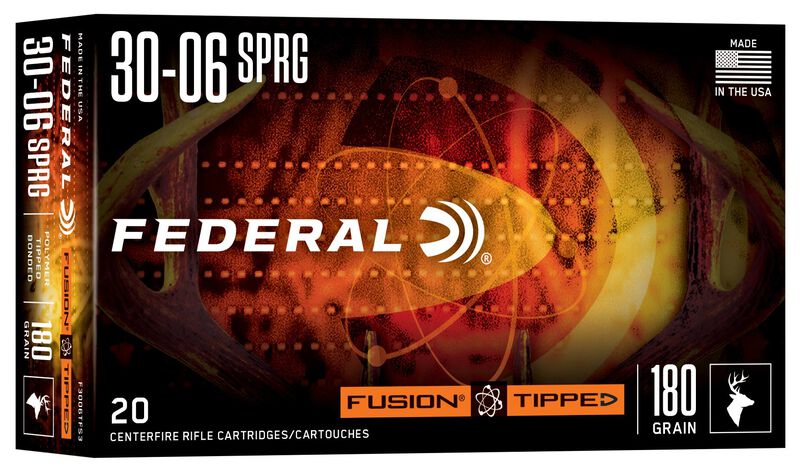

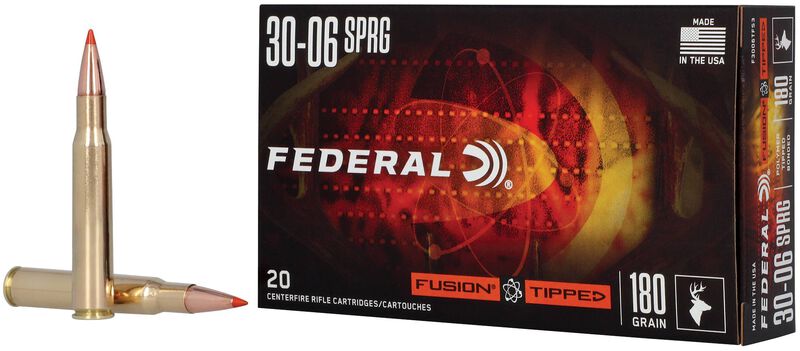

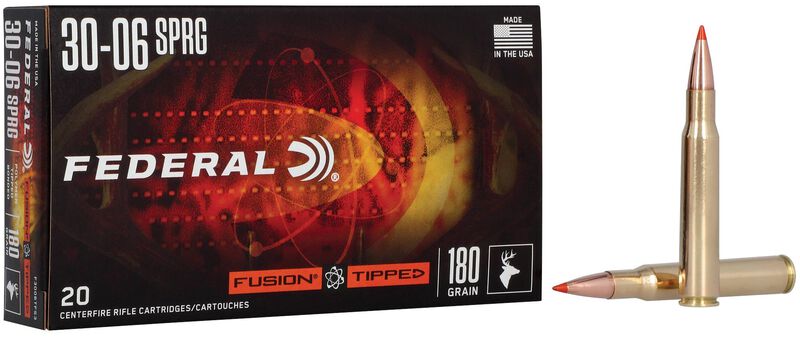

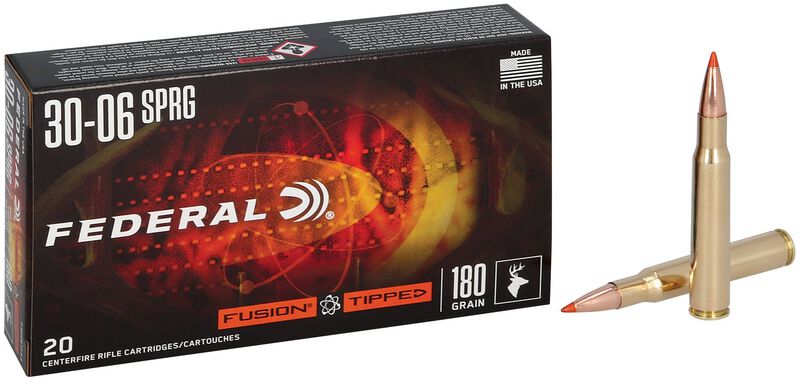

Fusion Tipped Rifle, 30-06 Springfield, 180 Grain, Tipped Fusion, 2725 fps
New
Fusion Tipped Rifle, 30-06 Springfield, 180 Grain, Tipped Fusion, 2725 fps
Part #
F3006TFS3
- Grain Weight: 180
- Bullet Style: Tipped Fusion
- Muzzle Velocity: 2725
$52.99
Expected Availability:
false
WARNING for California Residents
null
Important Safety Information
WARNING: Discharging firearms in poorly ventilated areas, cleaning firearms, or handling ammunition may result in exposure to lead and other substances known to the State of California to cause birth defects, reproductive harm, and other serious physical injury. Have adequate ventilation at all times. Wash hands thoroughly after exposure. For more information go to www.p65warnings.ca.gov/.
Adding Pre-Order products to your cart will reserve your purchase for future shipment. The estimated shipping date is based upon the expected availability date listed. Your credit card will not be charged until your Pre-Order item(s) have shipped. Product availability and shipping dates subject to change.
Restrictions
Product Overview
From The World Leader In Ammunition™, Federal® Fusion® became a legend in the deer woods for a reason. Its pressure-formed lead core is molecularly bonded to a consistent copper jacket, resulting in the highest weight retention, deepest penetration and best expansion in its class. We've written a new chapter to the Fusion story with Fusion Tipped. The design offers the same great terminal performance as the original, but with a polymer tip that increases ballistic coefficient, flattens trajectories and boosts energy for better accuracy and extended effective range.
- Polymer-tipped design
- Reduced wind drift and drop, as well as more energy downrange
- Polymer tip paired with skived nose cavity initiates consistent, lethal expansion.
- Copper jacket is electro-chemically bonded to the core, resulting in a perfectly uniform jacket
- Excellent accuracy
- Maximum weight retention for deep penetration
Specs
| Caliber | 30-06 Springfield |
| Grain Weight | 180 |
| Bullet Style | Tipped Fusion |
| Muzzle Velocity | 2725 |
| Ballistic Coefficient | .501 |
| Package Quantity | 20 |
| Usage | Medium Game |
Ballistics
Velocity in feet per second
| Muzzle | 100 Y | 200 Y | 300 Y | 400 Y | 500 Y |
|---|---|---|---|---|---|
| 2725 | 2546 | 2375 | 2210 | 2051 | 1899 |
Energy in Foot Pounds
| Muzzle | 100 Y | 200 Y | 300 Y | 400 Y | 500 Y |
|---|---|---|---|---|---|
| 2968 | 2591 | 2253 | 1951 | 1681 | 1441 |
Wind Drift in Inches (at 10 mph)
| Muzzle | 100 Y | 200 Y | 300 Y | 400 Y | 500 Y |
|---|---|---|---|---|---|
| 0 | 0.7 | 2.7 | 6.5 | 11.9 | 19.1 |
Wind Drift in Inches (at 10 MPH Crosswind)
Average Range
| 50 Y | 100 Y | 200 Y | 300 Y |
|---|---|---|---|
| -0.1 |  |
-3.8 | -13.9 |
Height of bullet trajectory in inches above or below line of sight if zeroed at 100 yards. Sights 1.5 inches above bore line.
Long Range
| 50 Y | 100 Y | 200 Y | 300 Y | 400 Y | 500 Y |
|---|---|---|---|---|---|
| 0.8 | 1.9 | |
-8.2 | -23.4 | -46.7 |
Height of bullet trajectory in inches above or below line of sight if zeroed at 100 yards. Sights 1.5 inches above bore line.
